Cabinet Incubator

Main Features

Incubator and hatcher all in one
Multiple uses for chicken eggs, quail eggs, duck eggs, goose eggs, and pigeon eggs.
Easy operation by fully automatic control of egg turning, egg hatching
Well-controlled temperature, humidity, and ventilation by microcomputer controller
Alarm when temperature and humidity are low or over
Higher hatching rate
Holds 88-22528 chicken eggs (other eggs see details)

Cabinet egg incubator for sale

A cabinet incubator is also called a commercial incubator, industrial incubator, large incubator, incubator and hatcher, etc. Get high productivity and high efficiency by buying an automatic cabinet incubator to save your time and energy! It is easy to deal with instead of standing by a manual machine worrying about the over or low temperature.

multi functional poultry incubators for various types birds

The cabinet incubator from FAMtech is a type of microcomputer full auto hatcher machine with core high-quality electrical components and control circuits. It is used to hatch eggs by simulating the natural hen hatching via control of the temperature, humidity, and ventilation. The working process of the machine contains incubation and hatching. During incubation, egg trays are turned at 45 degree to prevent embryo and shell adhesion, which is conducive to embryo development. The hatching process doesn’t need to do so.

Advantages of industrial incubator hatcher

large industrial incubator hatcher — incubator for large scale farm

commerical incubator for small farm — incubator for small scale farm

Incubator and hatcher combo
The egg setting and hatcher can be realized in one machine, which can save cost, time, and energy, and also improve the production efficiency for customers.
Multifunction
The incubator is equipped with egg-turning trays for various types of eggs such as chicken eggs, quail eggs, duck eggs, goose eggs, and pigeon eggs.
Wide range of capacity
The incubators are designed to suit any scale of farms from small ones to large ones.
Easy operation
The temperature, humidity, ventilation, and water supply are fully automatic. Alarms sound when over-temperature, over-humidity, low temperature and low humidity happen.
Better hatching rate
Thanks to the well-controlled system of temperature, humidity, ventilation, and water supply, the hatching rate is normally at 98%.

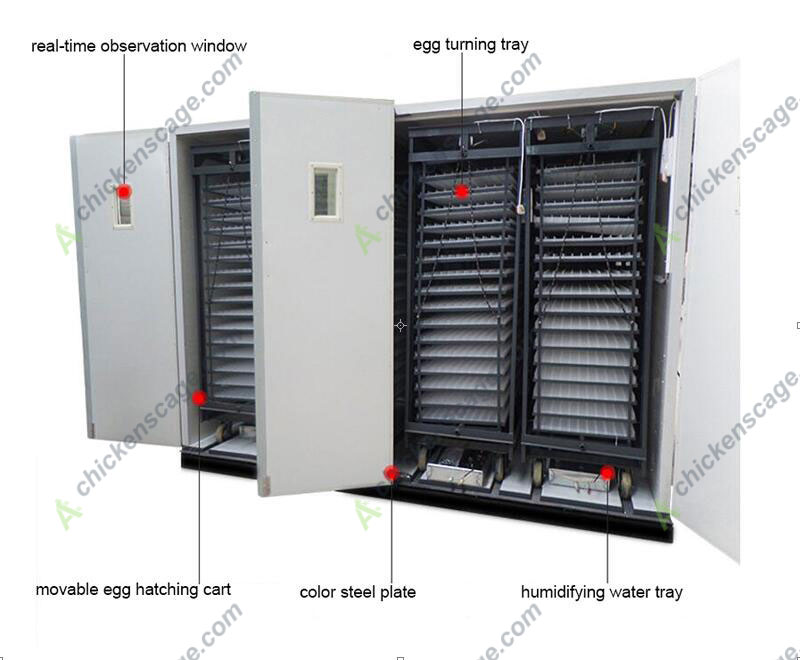

Details of microcomputer full auto hatcher

Dual power system

With the dual power system of coal and electricity, no worry if the electricity is out. Unnecessary loss is avoided.

Automatic water supply system

One side is connected to the bucket and the other side is connected to the water plate in the cabinet. Water is flowing to the plate by gravity. when the water is full the water valve floats and the filling automatically stops.

Automatic egg turning system

A chain system is designed to be stable and durable with the scientific structure to evenly heat the breeding egg. The travel switch is accurately controlled to be coordinated with the heating and chain system.

Built-in temperature and humidity sensor

Real-time monitoring of temperature and humidity by imported sensor. Data is displayed on the controller and the alarm automatically sounds.

Color steel plate-made body

The body shell of the incubator is made of color steel plate which is strong, has better insulation, lower noise.

Real-time observation window

The observation window on the front door is convineint for the real-time observation of hatching process.

Heating system

Evenly distributed heating tubes can generate heat quickly and spread the heat through temperature fans.

Temperature fans

Temperature fans are working together with the heating system to guarantee the breeding eggs are uniformly heated.

Humidifying water tray

Humidifier plate can provide suitable humidity for the breeding eggs. The filling of water is automatic and will stops once it is full.

Circulating exhaust fans

Good ventilation to ensure air circulation and improve the hatching rate of breeding eggs.

Sealed door

The door has a seal made of extruded soft rubber material, which close the door tightly and windproof to keep a stable temperature in the cabinet.

Specification of commercial incubators

		Capacity（Pcs per set）					power(W)
No.	Scale	Chicken egg	Duck egg	Goose egg	Pigeon egg	Quail egg	700
1	Samll Scale	88	63	32	112	221	700
2		176	128	64	224	442	700
3		264	189	96	336	663	700
4		352	252	128	448	884	700
5		440	315	160	560	1105	700
6		528	378	192	672	1326	700
7		880	630	320	1120	2210	1000
8		1056	756	384	1344	2652	1000
9		1232	882	448	1568	3094	1000
10		1408	1008	512	1792	3536	1000
11		1584	1134	576	2016	3978	1600
12		1848	1323	672	2352	4641	1600
13	Medium Scale	2112	1512	768	2688	5304	1600
14		2376	1701	864	3024	5967	1600
15		2640	1890	960	3360	6630	1600
16		2816	2016	1024	3584	7072	1600
17		3468	2258	1152	4032	7956	1600
18		3520	2520	1280	4480	8840	1600
19		3872	2772	1408	4928	9724	2000
20		4224	3024	1536	5376	10608	2000
21		4576	3276	1664	5824	11492	2000
22		5280	3780	1920	6720	13260	2000
23		6336	4536	2304	8064	15912	2000
24		8448	6048	3072	10752	21216	3200
25	Large Scale	9856	7056	3584	12544	24752	3200
26		12672	9072	4608	16128	31824	4800
27		14784	10584	5376	18846	37128	4800
28		16896	12095	6144	21504	42432	6400
29		19712	14112	7186	25088	49504	6400
30		22528	16128	8192	28672	56576	6400

Why FAMtech

FAMtech specializes in fully automatic control incubators and hatchers which integrated research and development, production, sales, and service in one. Our factory has years of experience in the production of incubators and has accumulated advanced production technology. We can provide various types of incubators for domestic and foreign customers. The egg incubators are exported to South Africa, India, South Korea, Russia, Vietnam, India, Malaysia and other countries. Our good reputation and perfect after-sales service are highly recognized by customers at home and abroad.
