Broiler Cage

broiler cage for sale

Product: A type broiler cage, H type broiler cage

Tiers: 3/4 tiers or more upon request

Material: Hot galvanized, cold galvanized

Lifespan: Last 20-30 years

Sales volume: Customers cover 80+ countries

Certificate: ISO9001, CE, SGS, SONCAP

Get a Quote

Product Overview

As one important classification of chicken cage, broiler cage is used for rearing meat production purpose chickens. The chickens are kept in cages for growing between one day old to about 56 days for harvesting. The harvesting day can be early as 40-45 days if the weight and meat condition are up to market standard.

The broiler cage is designed to get a higher growth rate, reduce the time of breeding, make broiler chickens gain more weight. The average space of broilers is limited which forces the chicken to move less and brings a high conversion rate of feed. As a result, the weight of the broiler is increased as well.

Advantages of FAMtech Broiler cage for sale

  • FAMtech broiler cage has been improved after years of marketing practice to have a better meat ratio and survival rate.
  • The reasonable design of the structure, the durable material, the automatic feeding, manure cleaning, and the harvesting system all contribute to healthy growth and good meat result.
  • The various models and customizable services offer customers a great choice. No matter what scale of poultry farm you are running, there’s always one broiler cage that suits you.
  • Free design of poultry house based on the field research.
  • Long-lasting service time is up to 30 years due to the first-grade material and manufacturing technique.

A type broiler cage

A type broiler cage

Structure

  • Q235 double cold galvanized anti-corrosion
  • Q235 national standard double cold galvanized bridge steel cage
  • white PVC feed trough
  • ball type automatic water equipment
  • white PVC pipe
  • 3MM U type galvanized steel shelves
  • closed-end pressure-reducer
  • Al-Zn material feeding system
  • AL-Zn material manure cleaning system
  • ventilation system, lighting system
  • environment controlling system

Advantage of A type broiler cage

  • The high density of rearing.
  • Simple structure, easy maintenance.
  • Automatic drinking, feeding, manure cleaning can save time and labor.
  • Easy to repair when encountering fault or power failure.

Specification of A type broiler cage

TiersCell Size (mm)Set Size (mm)Chicken Capacity
3-tier610*500*3501830*2300*1500126
4-tier610*500*3501830*2365*1700168

H type broiler cage

FAMtech offers different models of H type broiler cages to satisfy the specific needs of small-scale to large-scale chicken farms.

H type broiler cage-simple small stacked type
small vertical H type broiler cage
H type broiler cage-single feeding trough and full opening cage door
single feeding trough H type broiler cage with full opening cage door

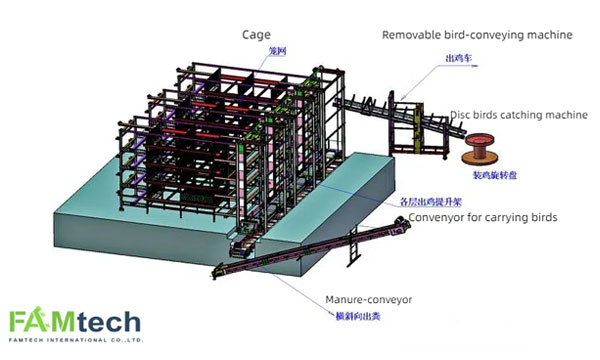

Advanced H type broiler cage with auto-harvester

H type broiler cage-advanced type

If the number of broilers is above 25000, FAMtech suggests you use the Advanced H type broiler cage with an auto-harvesting system. It not only surpasses the flat rearing or A type broiler cage in the way of capacity but also has many other remarkable advantages.

Advantage of Advanced H type broiler cage

broiler-cage-detail-1
elastic bottom net
broiler-cage-detail-2
appropriate gap size of bottom net
broiler-cage-detail-3
feed plate
broiler-cage-detail-4
full open cage door
  • The broiler can grow on the strong, elastic, sanitary bottom net which can comfort their feet and effectively avoid chicken breast hematoma, reducing disease and mortality.
  • An appropriate size of the bottom net ensures the leakage of chicken manure and avoid manure accumulation on the net.
  • A specially designed feed plate can prevent feed overflow. Feed plate height can be adjusted as the growth of days.
  • Feeds are uniformly distributed within the feeding trough by the driving trolley.
  • The height of the feeding gate can be adjusted accurately.
  • Feeding pedals provide a comfortable environment for chicks.
  • The height of the water pipe can be adjusted up and down as the chicken grows.
  • Drip-proof cups and plates prevent water from falling onto the manure belt.
  • Light is an important aspect of chicken growth and feed conversion. The adjustable LED light source provides excellent lighting. LED lights are sustainable and consume less energy.

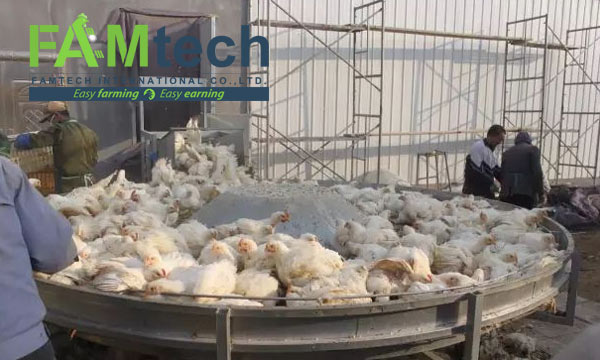

  • To simplify the process of catching chickens, we designed a plastic draw-out bottom net.The bottom net is pulled out, the broiler falls on the manure belt, and the The manure belt is transported to the chicken catching tray outside the house.

Specification of H type broiler cage

Model9LCR-33009LCR-3549LCR-3789LCR-31569LCR-3108
Square of cage (mm)2960*18001400*7001600*8001600*8001400*700
Distance between legs (mm)14801435163516351435
Square for one bird (cm2)532492544492544
Door/set12661212
Size of each door of cage2960*1800700*700800*800800*800700*700
Birds/door/set100/3009/5413/7813/1569/108
