20000 Layer Poultry House Design
- Chicken cage type: A type, 4-tier layer cage (160birds/set)
- Total cage sets: 32 sets
- Total capacity of layers: 32×160=5120 birds
- Chicken cage size: 2.15 m × 2.3 m × 1.5 m (L × W × H)
- Chicken house size: L × W × H = 26m × 15 m × 4 m (approximately 4198 sq ft)
- Chicken house layout: 160 chickens/set, 8 sets/row, 4 rows/house
- Manufactured in our own factory, not assembled from externally sourced parts.
- Steel wire material, anti-corrosion treatment (hot-dip galvanizing / high zinc coating).
- Long-term stability and maintenance costs

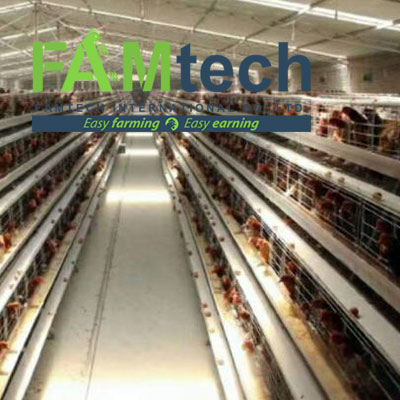

20000 chicken farm layout
The 20000 layer farm project uses A type 4-tier layer cage as the main equipment. The land needed is about 4198 sq ft. The capacity of the simple battery cage is 160 birds/set. To cover the needs of breeding 20,000 layers, 32 sets of cages are arranged in 4 rows with 8 sets per row.
The feeding system includes a spiral feeding pipe and 4 sets of automatic feeding machines. Automatic or semi-automatic options are available for the drinking system and egg-collecting system. The manure is directly dropped into the ditch below chicken cages and is removed by scraper machines. The configuration is flexible and can be adjusted according to the specific requirements of customers.
Chicken house length: Approximately 26 m. The gap space between layer cages is counted, so the estimated length of one A-type 4-tier layer cage is about 2.185 m. One row has 8 sets of cages, so the total length of one row is 2.185 m × 8 = 17.48 m. A layer farming shed commonly has 8 meters of front and back distance. So the total length of the 20,000-chicken farm is 17.48 m + 8 m = 25.48 m (approximately 26 m).
Chicken house width: 15 m. 4 rows of cages have 4 rows of manure ditches. To help clients understand the construction requirements, the layout drawing divides the width of ditches (4 ditches, 2.1 m each) and the width of 5 channels (3 of 1.4 m & 2 of 1.2 m). The total width is 2.1 m × 4 + 1.4 m × 3 + 1.2 m × 2 = 15 m.
Chicken house height: 4 m. The total height of the farm includes the clear height of the 4-tier layer cage, the feeding machines above the cage, the feeding pipe height, and the reserved space to the roof.

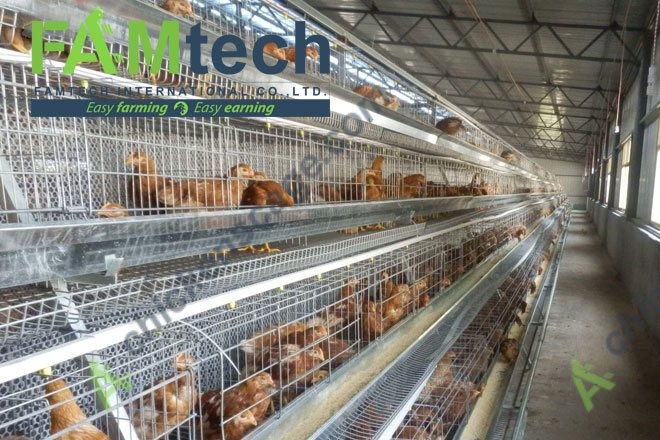

4-tier A type layer cage dimension
| Type | Capacity/set | Cage size (cm) | Cell size | Cell capacity | Door | Area/bird (cm2) |
|---|---|---|---|---|---|---|
| A type 4 tiers | 160 birds/set | 215*230*150 | 43*41*41 | 4 birds/cell | 4 doors | 440.75 |
Equipment configurations
The poultry house plan for 20,000 layers adopts the main equipment as shown in the table below. Note: The table is only for reference; you can contact us for the complete list!
| Item | Type | Quantity |
|---|---|---|
| Layer cage | A type 4-tier layer cage | 32 sets, 8 sets/row |
| Feeding machine | Automatic | 4 sets, 1 set/row |
| Drinking system | Automatic | 4 sets, 1 set/row |
| Feeding pipe | Auger | 1 set |
| Manure removal system | Semi-automatic | 4 sets, 1 set/row |
One-stop layer poultry farm design solutions
Tailored layer chicken house design
The layer chicken house design is customized based on land conditions, climate, and budget. Semi-open or closed type of chicken house.
- Tropical areas or cold areas.
- Large-scale or small- to medium-scale.
- Automation degree and initial investment.
Optional auxiliary equipment
All equipment required for building a layer chicken house is supplied. Egg collecting machine is optional.
- Automatic or semi-automatic chicken feeding and drinking system.
- Automatic or semi-automatic manure removal system.
- Automatic ventilation systems.
One-stop services
FAMtech is dedicated to making chicken house plans and helping clients realize efficiency, as well as the cost-saving effect. We don’t just supply layer cages; we design complete layer poultry farm solutions.
- Owned factory: Design → Production → Testing → Shipping.
- Project-level support: Layout diagrams / Technical specifications / Installation instructions
- Remote or on-site after-sales support
Design from the customer's perspective
FAMtech understands what our clients value the most. The design of layer farms and broiler farms pays attention to cost-effectiveness. No waste of equipment purchase, land utility, or labor budget.
- Reach a balance of productivity and efficiency.
- Take considerations of complexity of management in the future, the number of workers needed.
- Manure removal and environmental control are well handled.
What our customers say
Customized Design Based on Real Conditions
“The layer chicken house design was tailored to our land conditions, local climate, and budget. The layout is practical, easy to manage, and well-suited for long-term layer farming. Everything works smoothly after installation.”
— Farm Owner, 20,000 Birds Layer Project
Practical and Well-Balanced Solution
“The 20,000 birds layer farming solution was not over-designed. The automation level and equipment configuration were well balanced with our investment plan, which helped us control costs while maintaining stable egg production.”
— Project Manager, Layer Poultry Farm
FAQ (frequently asked questions)
Q1. How large should a layer chicken house be for 20,000 birds?
There is no fixed size for a 20,000 birds layer chicken house. The final building dimensions depend on cage type, number of tiers, aisle width, and ventilation design. We calculate the layout based on actual capacity requirements, management efficiency, and future expansion, rather than using standard templates.
Q2. Can the layer poultry farm design be customized for my land and climate?
Yes. Each layer poultry farm design is customized according to land conditions, climate, wind direction, and local infrastructure. This ensures proper ventilation, easy daily management, and stable egg production throughout the year.
Q3. What level of automation is recommended for a 20,000 birds layer farm?
For a 20,000 birds layer farming project, automatic feeding, drinking, and manure removal systems are strongly recommended. Egg collection can be semi-automatic or fully automatic, depending on labor cost and investment budget, allowing a balanced and cost-effective solution.
Q4. How many workers are needed to manage 20,000 layer chickens?
With a properly designed layer chicken house and automated equipment, a 20,000 birds layer farm can usually be managed by 2–4 workers, depending on the automation level and daily management routine.
