4 Tier Layer Cage

Core advantages of the 4-tier layer cage system

Increases productivity per unit space

Compared with the 3-tier layer cage, a 4-tier layer cage can accommodate more birds, making more out of the space utilization.

Saves labor costs

The 4 tier layer cage system can reduce the abundance and intensity of work, improves breeding efficiency.

Compatible with the automatic system

The 4-tier layer cage system is highly automated in terms of chicken feeding precision and manure removal, which reduces the possibility of disease and lowers feed costs.

Product details

A type 4 tier layer cage & H type 4-tier layer cage.

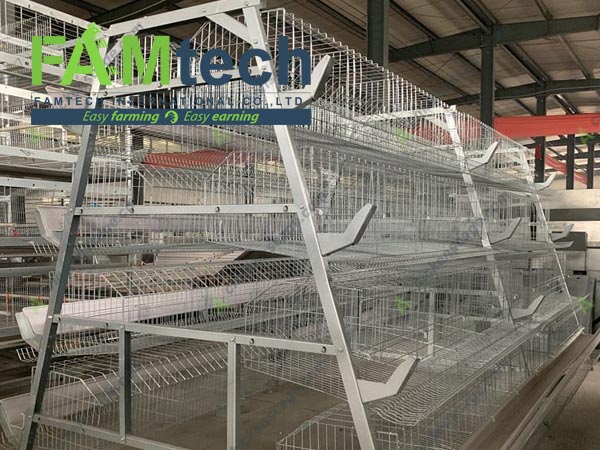

A type  4 tier layer cage features a simple structure, is easy to operate, has good ventilation, requires less investment, and has relatively small capacities.

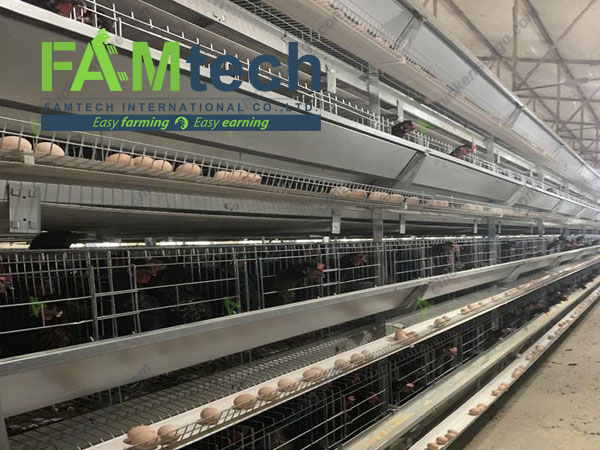

H-type 4-tier layer cages feature max utilization of land area, high capacity, a high degree of automation, a relatively high investment, and a higher long-term ROI.

Material

The cage net is made from Q235 bridge wire mesh with a thickness of 300-350 g/m. The cage frame is a 2mm thick Al-zinc material hot galvanized steel sheet.

Durability

The whole cage is not only strong but also has good plasticity due to the premium material and exceptional galvanized process.

Automatic equipment and workflow

List of automatic equipment: drinking system, feeding system, manure cleaning system, egg collection system, temperature control system, environmental control system, lighting system, and heating system.

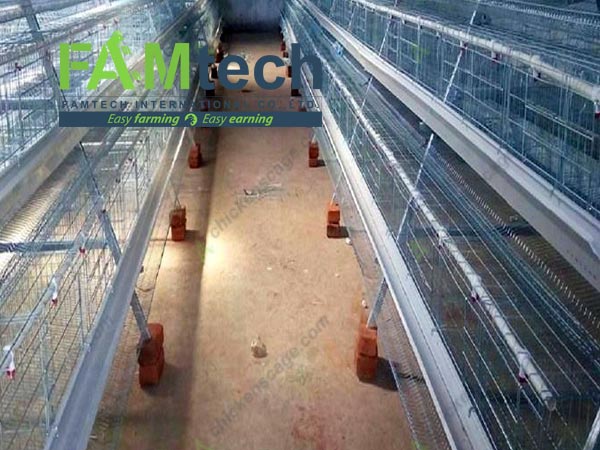

Automatic drinking system: water pipe, nipple drinker, pressure regulating valve, or water tank.

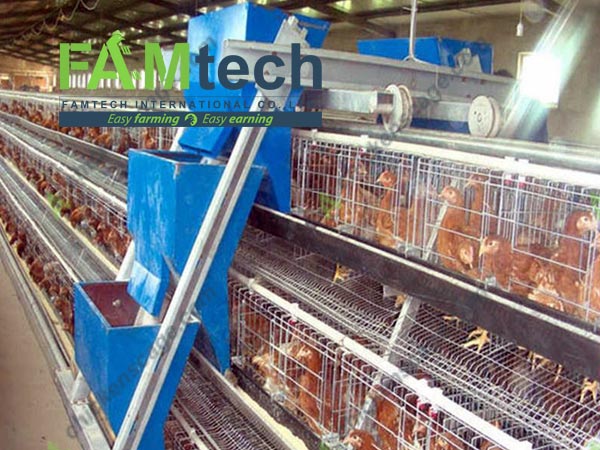

Automatic feeding system: feed silo, dispenser, feeding hopper, and feeding trough.

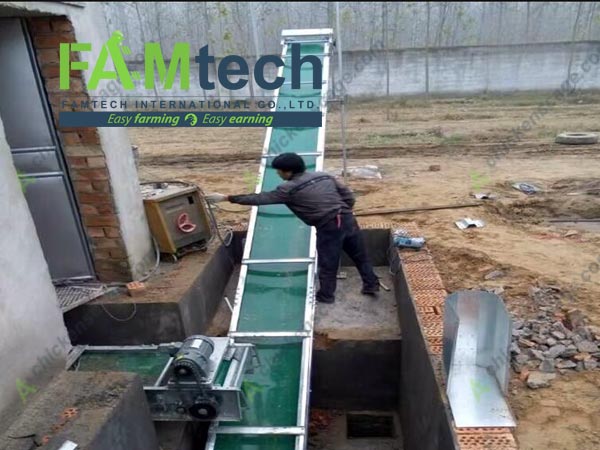

Automatic manure cleaning: a collecting belt under each tier of cage, a drive system, and a conveying belt keep moving and discarding chicken manure.

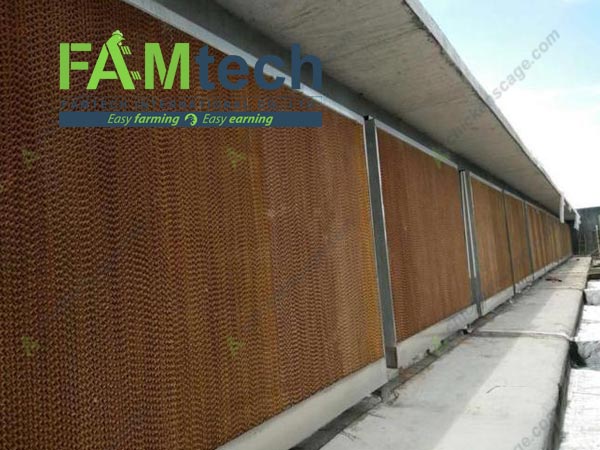

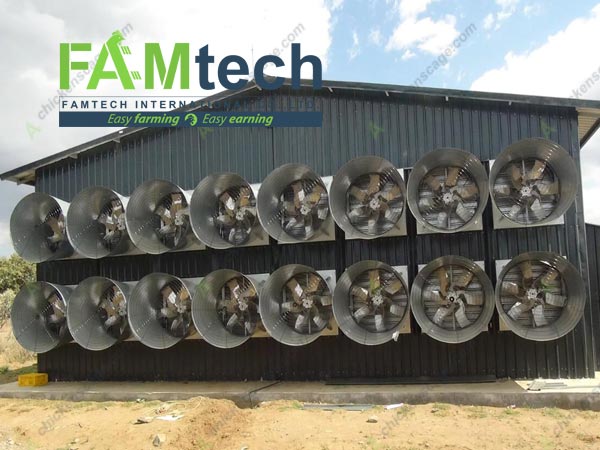

Intelligent climate control system: the temperature and environmental control are realized by an intelligent system, which is easy to manage and adjust.

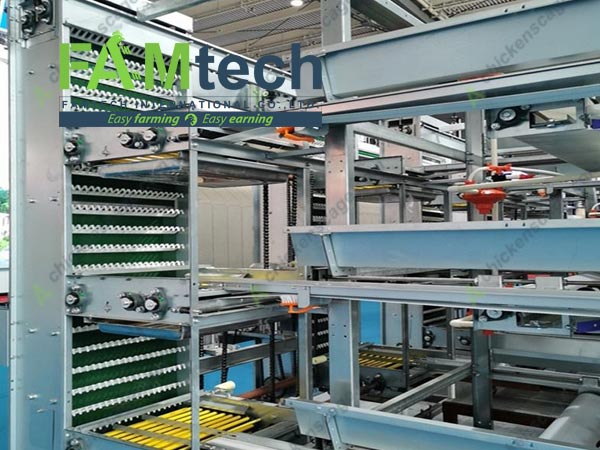

Egg collecting system: includes the egg belt, a guiding device, an egg pick-up device, a lead-out device, a buffer device, a conveying device, a sprocket, and a long drop chain.


Specification of a 4-tier layer cage

A type 4 tier layer cage

H-type 4-tier layer cage

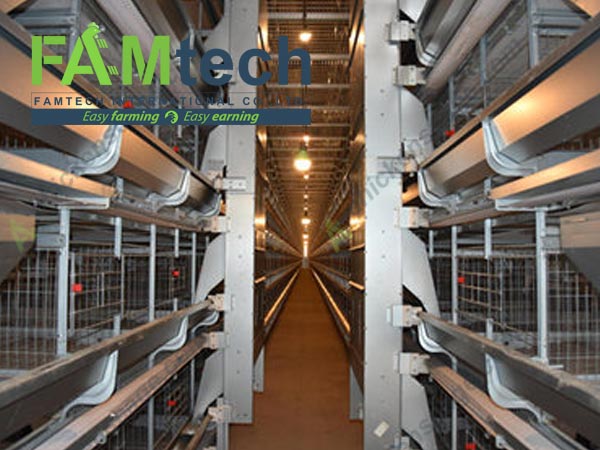

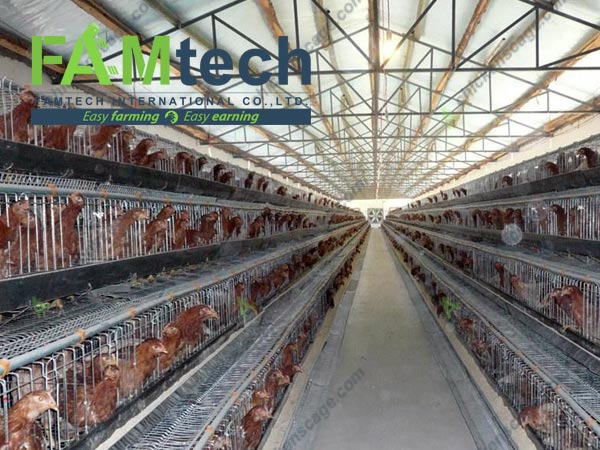

Successful case

Technical support

The battery cages are disassembled in containers for delivery and assembled on site. Special personnel are responsible for providing guidance. The installation period is affected by several factors, including team size, proficiency, and the chicken shed preparation situation.

• 20,000–30,000 birds take about 7-12 days.
• 40,000–60,000 birds take about 12-18 days.
• 80,000–100,000 birds take 18-30 days.

The timeline above assumes the main structure of the chicken coop has been completed, the ground leveling is finished, the power infrastructure is in place, and an experienced installation team is in place.

For large commercial projects, we offer thorough installation instructions and on-site technical support to guarantee a seamless and effective setup.

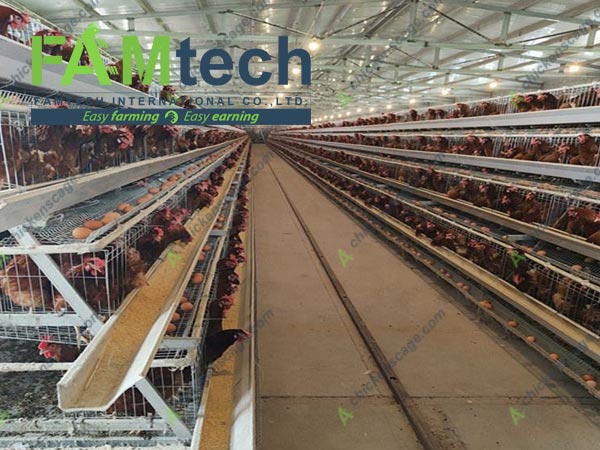

Get Free Commercial Farm Design

FAMtech offers free poultry farm design solutions for various poultries such as broiler chickens, layer chickens, baby chicks, pullets, rabbits, quails, etc. Sample design: 5000 layer poultry farm, 20000 layer poultry farm, 50000 layer poultry farm.

Free design

FAMtech offers free consultation for product selection and free poultry farm design solutions.

Fast quotation

We can make a quick response in 24 hours and save precious time for our clients.

Tailor-made solutions

The poultry house plans delivered are customized to best fit the various conditions of climate, regulations, land area, power resource, and egg production goals.
