40000 Layer Poultry Farm Design
- Chicken cage type: H type, 4-tier layer cage (72 birds/set)
- Total cage sets: 556 sets
- Total capacity of layers: 556×72=40,032 birds
- Chicken cage size: 0.65 m × 1.25 m × 2.85 m (L × W × H)
- Chicken house size: L × W × H = 100 m × 12 m × 4 m (approximately 12916.69 sq ft)
- Chicken house layout: 72 chickens/set, 139 sets/row, 4 rows/house
- Moderate height of chicken cages makes it easy to operate and maintain, saving labor.
- Reasonable size of the chicken house and equipment configuration saves cost.

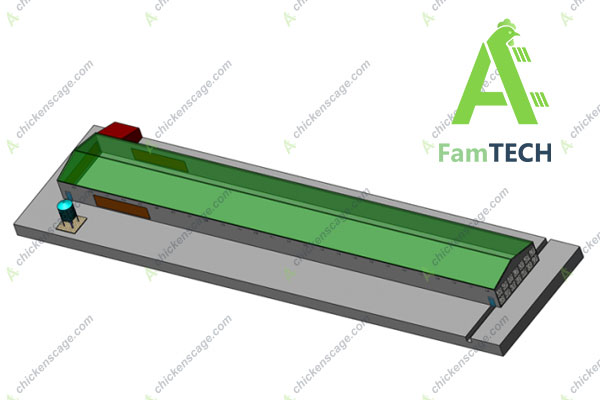

40000 layer farm layout
In the 40,000 layer farming project, a 4-tier H tpye layer cage system is adopted to balance the requirements of efficient breeding and as little floor area as possible. With 72 birds in each set of layer cages, 4 rows with 139 sets of cages per row, the total number of birds is about 40,000.
.jpg)
.jpg)
Layer farm size calculation

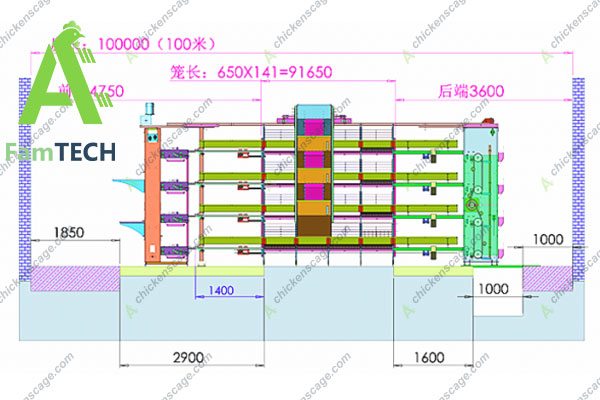

Length of 40,000 layer farm: 100 m. The length of the chicken house is the sum length of equipment (including the layer cages in one row, the egg collecting machine, the manure belt system) and the leftover space between equipment and walls.
In this case, the length of the layer cages per row is 91650mm. The length of egg collecting assembly is 2900mm. The length of the manure removal system is 2600mm. The front and end reserved space is 1850mm and 1000mm. So the total length of the chicken house is 91650mm + 2900mm + 2600mm + 1850mm + 1000mm=100000mm=100m

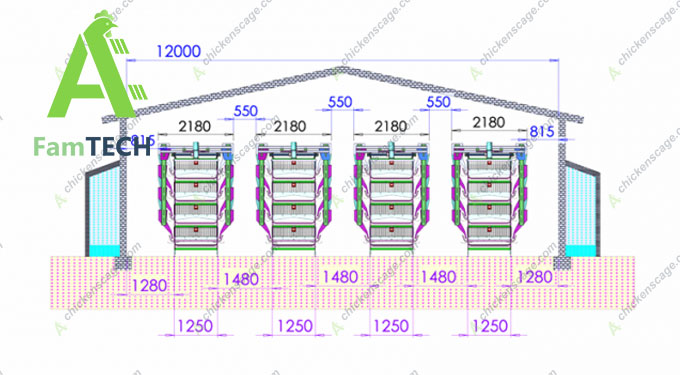

Width of 40,000 layer farm: 12m. The total width of the chicken house is the length of 4 sets of layer cages plus the length of 5 aisles.The width of one cage is 1250mm.In this chicken house, the two aisles next to the walls are 1280mm each, while the 3 center aisles are 1480mm each. So the total length of the chicken farm is 1250mm×4 + 1280×2 + 1480×3=12000=12m
Height of 40,000 layer farm: 4m.The height of the chicken house is 4m, which can accommodate the chicken cages and egg collecting machines, also good for chicken ventilation and climate control in the layer farm.
4-tier layer cage dimension
| Type | Capacity/set | Cage size (mm) | Cell size (mm) | Cell capacity | Door | Area/bird (cm2) |
|---|---|---|---|---|---|---|
| H type 4 tiers | 72 birds/set | 650*1250*2850 | 650*6250*500 | 9 birds/cell | 1 doors/side | 451.38 |
Main equipment for 40000-layer farming

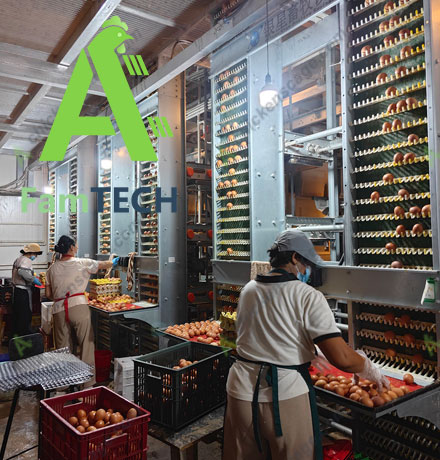

An automatic system is equipped for the 40000 layer farm, including automatic pp belt manure removal, transversal manure conveyor, automatic feeding, silo&feed uploading, automatic water drinking system, and automatic poultry egg collection system. The table below is the main equipment list. Please note that in the actual case, other auxiliary equipment may also be used. If you need any help in the configuration of your chicken farm, don’t hesitate to contact us!
| Item | Type | Quantity |
|---|---|---|
| Layer cage | H type 4-tier layer cage | 556 sets, 139 sets/row |
| Feeding machine | Automatic | 4 sets, 1 set/row |
| Drinking system | Automatic | 4 sets, 1 set/row |

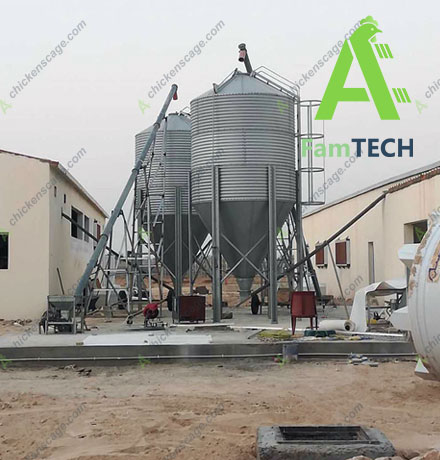

| Feeding pipe and silo | 1 set | |
| Manure removal system | Automatic | 4 sets, 1 set/row |
FAMtech strength
Deeply cultivated in fields of poultry farming
FAMtech has been devoted to the poultry farming industry for more than 30 years. During this time, more than 30 types of poultry equipment have been produced and innovated. FAMtech will continue manufacturing and supplying the most needed equipment to meet the rising demand of the poultry farming business.
Tailor-made solution provider
No matter what kind of poultry farms are in different countries and regions, our design team can provide customized solutions. The plan will suit your chicken breeds, farm scale, land area, climate conditions, and local environmental restrictions. The solutions offered by FAMtech aim to help farmers in easy management, high efficiency, high productivity, and low costs.
Trusted by clients across the world
Our poultry cages, cage-free systems, and integrated poultry farm design solutions have won a reputation among clients from Africa, Central Asia, Southeast Asia, South America, the Middle East, etc. You are welcome to come and visit our factory and see for yourself. Or we can arrange online tours.
Worry-free services
Customers can get attentive services from the very beginning to the completion of the project. Free pre-sale consulting, customized plan designing, compact manufacturing cycle, strict quality control, skilled packing, and timely delivery are basic. FAMtech pays attention to the after-sales services to guarantee the long-term performance of our products.
What do our customers say?
The solution saved us time and labor

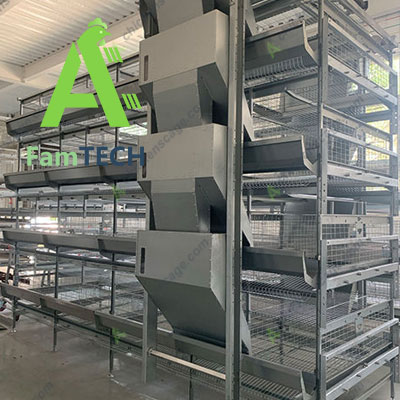

“The climate in the Middle East requires high corrosion resistance, which FAMtech excels in. The hot-galvanized chicken cage is free of these problems. Besides, the automatic systems saved 70% in labor costs. The egg production rate is more than expected.”
— Poultry farm investor
.jpg)
What a durable battery cage system!
“The layer cages are really sturdy, even in rainy seasons. Chickens are healthy in well-coordinated ventilation, climate control, humidity, and well-controlled ammonia gas. Local workers independently operate the system quickly after training.”
— Poultry farmer from Southeast Asia
