Chicken Breeding Cages

Chicken breeding cages are a type of battery cage specially designed for raising breeder chickens. The primary purpose is to provide a comfortable environment for roosters and hens, and to obtain high-quality hatching eggs.

According to the mating method, there are natural mating chicken breeder cages (the hens are raised in a mixed flock, allowing for natural mating) and artificial insemination chicken breeder cages (sex-separated cage breeding). FAMtech offers customized designs for broiler breeding cages and layer breeding cages. Plastic slatted floor systems and aviary systems are also available.

Specification of chicken breeding cages for sale

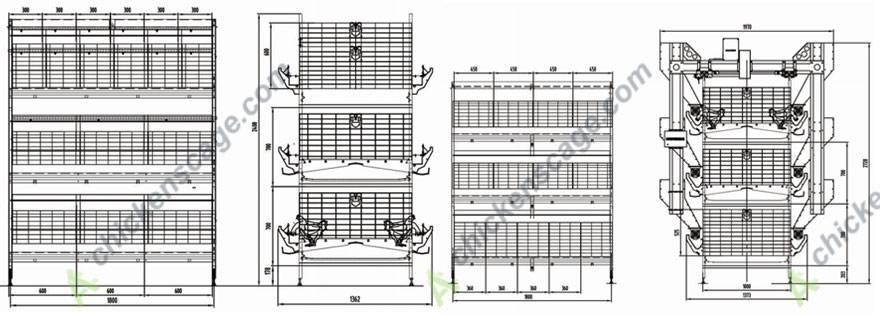

Broiler breeder artificial Insemination cage

Tier	3
Height of each tier (mm)	700
Overall dimension L × W × H (mm)	1800×1375×2286
Cell size mm L× W × H (4 cells each tier of the top 2 tiers)	450×490×500
Cell size mm L× W × H (4 cells of the bottom tier)	360×490×525

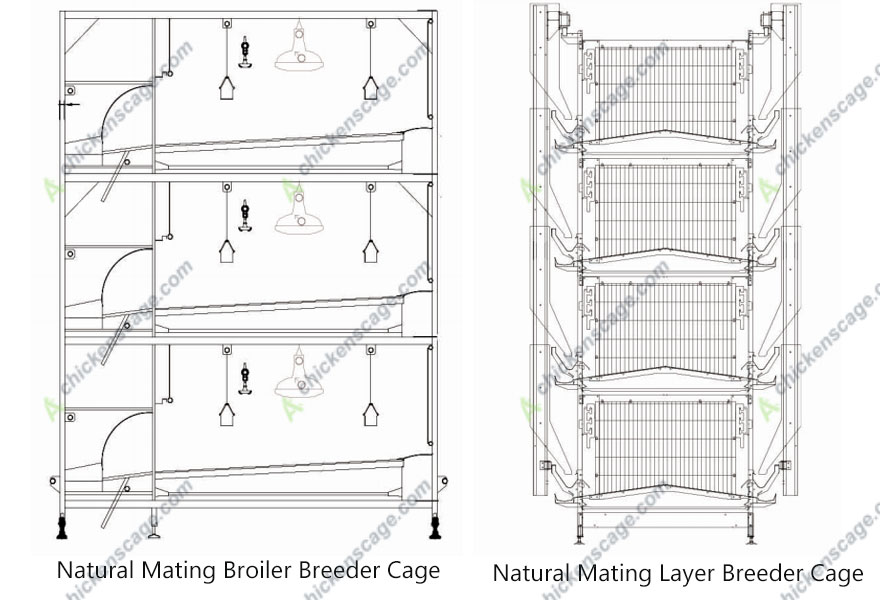

Natural mating broiler breeder cage

Item	Specification
Number of females in each tier of each section	46
Area of nesting boxes on each tier	0.835m²
Number of water lines set in each tier	1
Number of female feed lines set in each tier	2
Number of male feed lines set in each tier	1

Natural mating layer breeder cage

Item	Specification
Number of females and males in each tier of each section	90+10
Number of drinking lines set in each tier	2
Number of feeding lines set in each tier	2

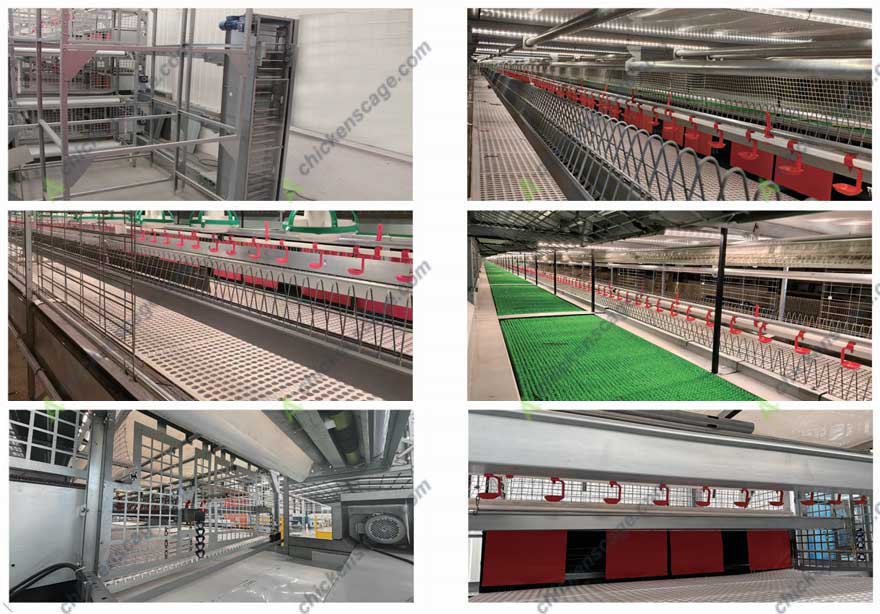

natural mating broiler breeder cage details

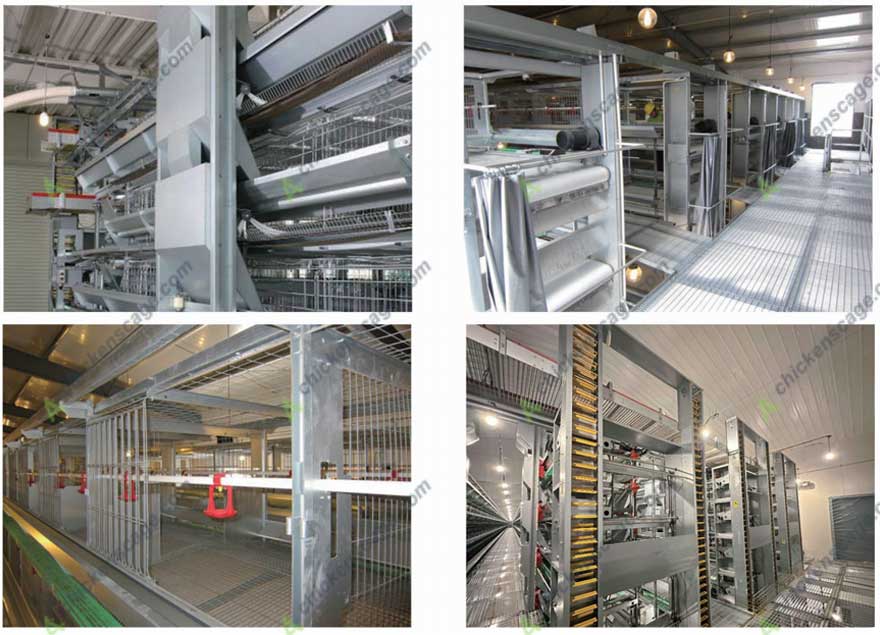

Core advantages of chicken breeder cages

Adapting to chicken body weight and behavior

The size of the cages and the diameter of the wire mesh have been specially designed to accommodate the weight of breeder chickens. The design also takes into account the physiological and behavioral characteristics of the broilers.

Ensure reproductive method

Natural mating: Large-sized cages provide enough space for the rooster and the hen to mate naturally.

Artificial insemination: Cages specifically designed for this purpose are used, and the cage door structure is specially designed to facilitate chicken handling.

Equipped with an egg-nesting box

Specially designed egg-nesting boxes provide hens with more comfortable and private space.

Egg-collecting-friendly design

The bottom nest is outwardly inclined, making it easy to collect eggs.

Customized design solutions

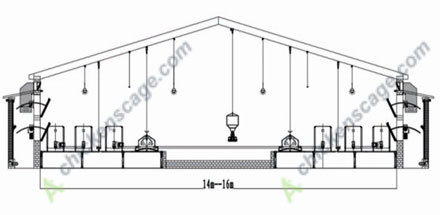

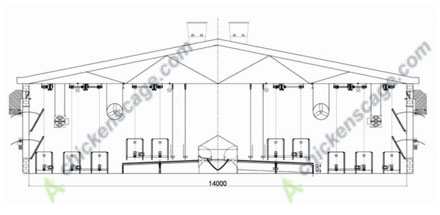

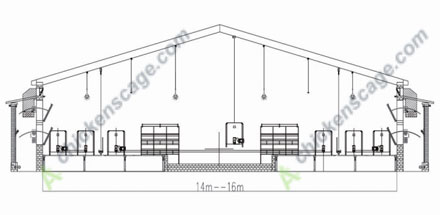

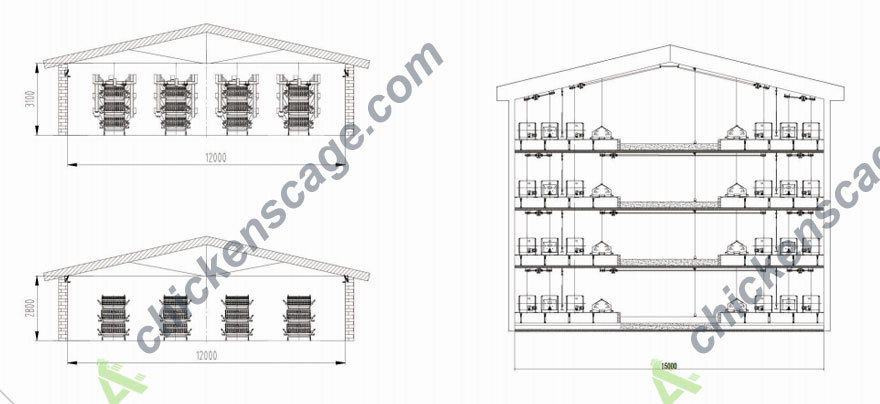

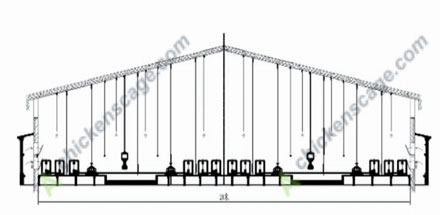

FAMtech offers tailored designs for battery type breeding cages and slat floor type breeding cages to best fit the requirements of poultry farmers. The drawing below is some design plans for your reference.

Supporting facilities for chicken breeding cages

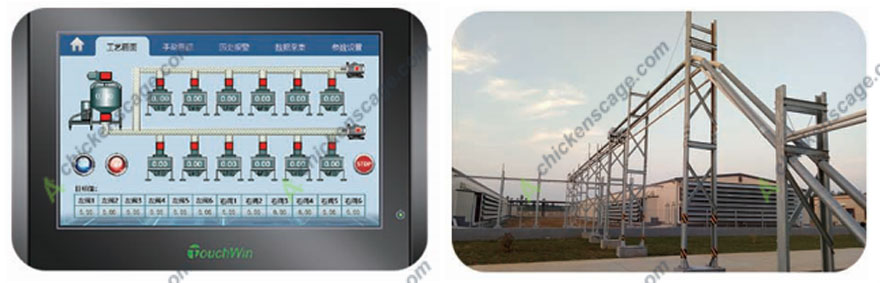

Farm feeding conveyor system

Consists of a control unit, a silo, a feed transfer system, batch weighing, an electric feed valve, etc.

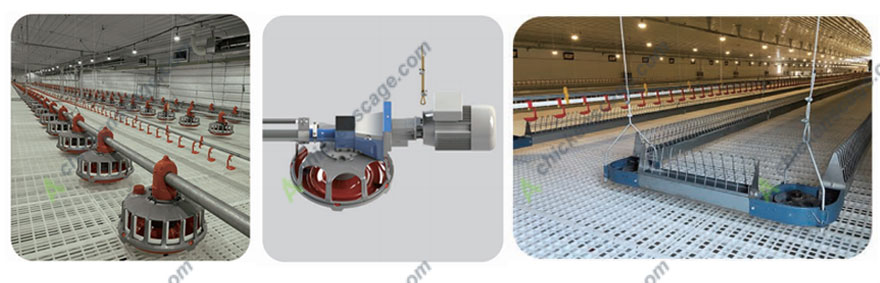

Pan feeding system & chain feeding system

Female pan feeding system, male pan feeding system; female chain feed system in a circle, female straight chain feed line; male chain feed system in a circle, male chain feed system in line.

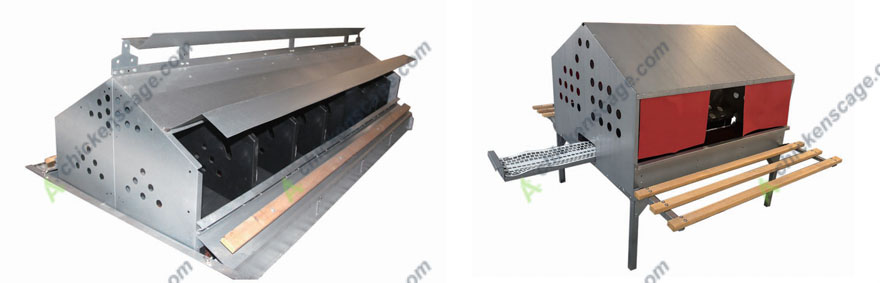

Automatic & manual type egg nests

Egg nests with distinct designs to meet chickens’ habits, facilitating egg laying. The egg nest can be connected to the central egg conveyor system, greatly improving automation and efficiency.

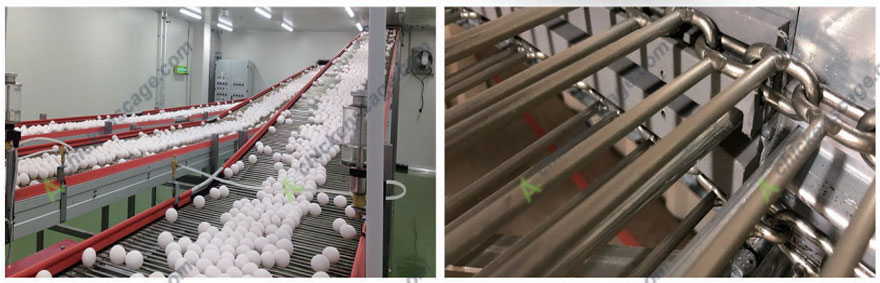

Egg collecting system

The single-tier and double-tier egg collection machines adopt a zinc-aluminum-magnesium alloy plate, which is corrosion-resistant and durable. What’s more, three types of chains are supplied to suit different slopes.

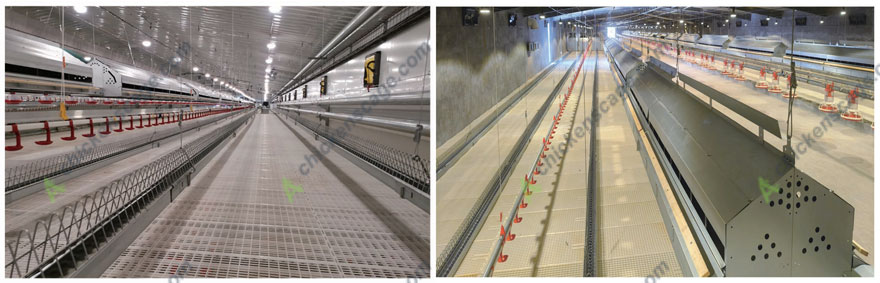

Plastic slat system

Polypropylene (PP) pure raw material processing, longer life, anti-aging, and anti-UV. The circular design is conducive to washing and manure dropping.

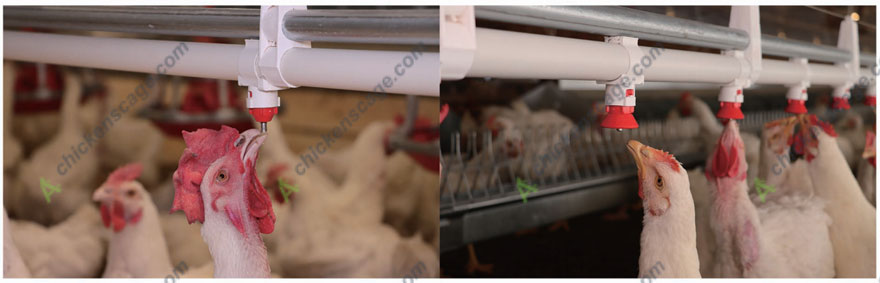

Drinking system

The drinking system has different nipple designs for males and females, avoiding mixed use. Stainless steel parts are corrosion-resistant. The double lock design fixes the drinker's nipple in the drinker's saddle. Hardened stainless steel plug-in makes the drinking nipple device durable and more resistant to wear.

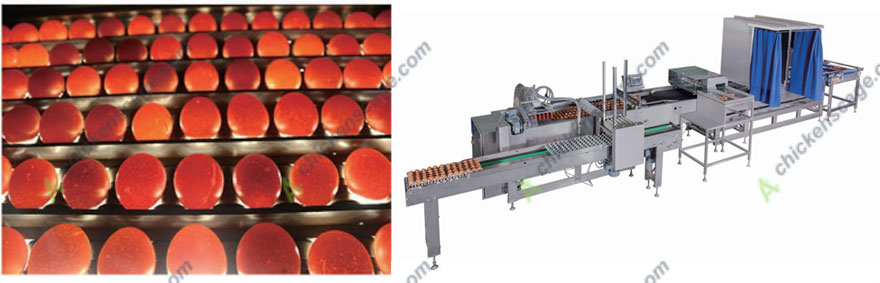

Egg grading system

The egg grading system carries out full column light inspection, electronic grading, and adjustment of the head of the eggs and the load of eggs.

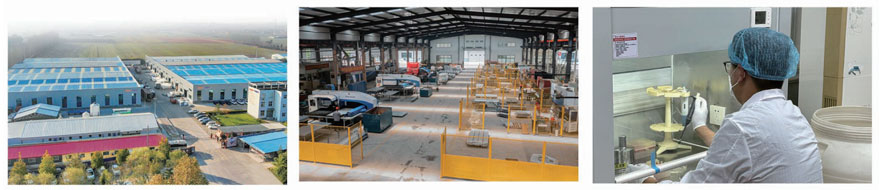

Why FAMtech?

Strong capability

FAMtech is a global supplier of poultry farm equipment with more than 20 years of experience. The services cover equipment R&D, design, manufacture, installation, and after-sales services.

Internationally qualified exporter

The company has passed the ISO9001 quality management system, installation qualification certification, import and export customs declaration qualifications, etc certifications.

Wide range of products and services

The business covers breeder cage systems, aviary systems, environmental protection systems for agriculture and livestock, and livestock and poultry transport trucks.

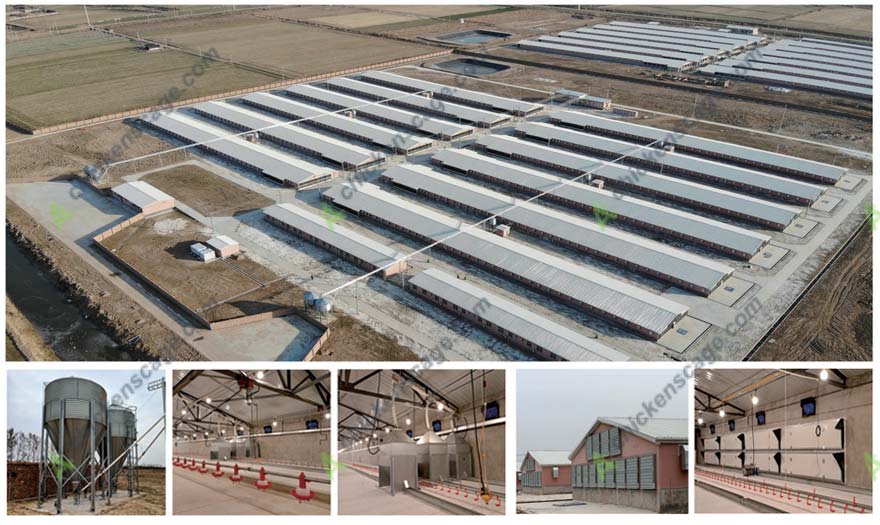

2000 successful cases

Nearly 2000 successful project has been launched domesticlly and abroadly. The overseas footprints you can find in the UK, the Netherlands, Finland, the Middle East, Australia, and other more than 48 countries and regions.
