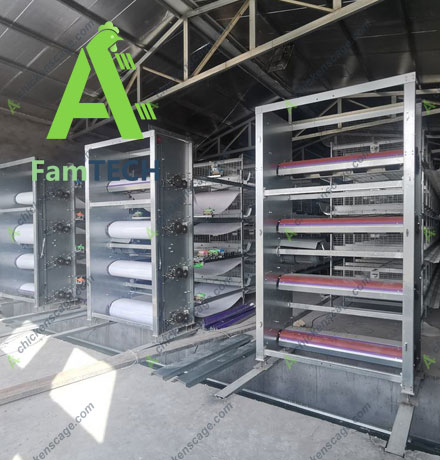

30000 Layers Housing Design
- Chicken cage type: H type, 4-tier layer cage (72 birds/set)
- Total cage sets: 417 sets
- Total capacity of layers: 417×72=30,024 birds
- Chicken cage size: 0.65 m × 1.25 m × 2.85 m (L × W × H)
- Chicken house size: L × W × H = 104m × 9.3 m × 3.5 m (approximately 10408 sq ft)
- Chicken house layout: 72 chickens/set, 139 sets/row, 3 rows/house
- Scientific design, an intelligent control system, high density of chicken farming, reducing costs, improving egg quality, safety, and a low rate of epidemic disease.

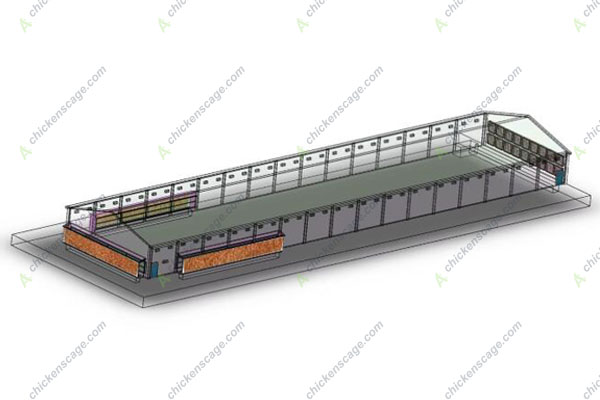

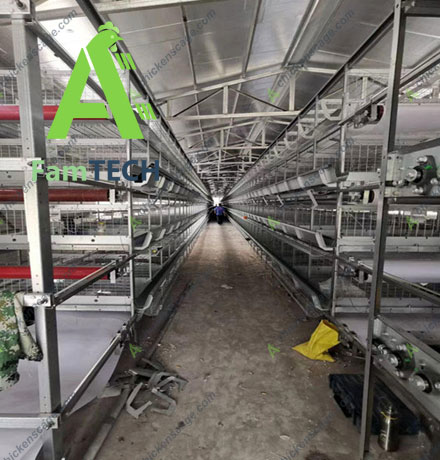

30000 layer farm layout
In the 30,000 layer farming project, you can use a 4-tier layer cage with a capacity of 72 birds for its highly efficient performance while taking as little space as possible. To raise 30000 in a house, 417 sets of cages are needed. The layout of the house features three rows, each with 139 sets of cages per row.
Layer farm size calculation

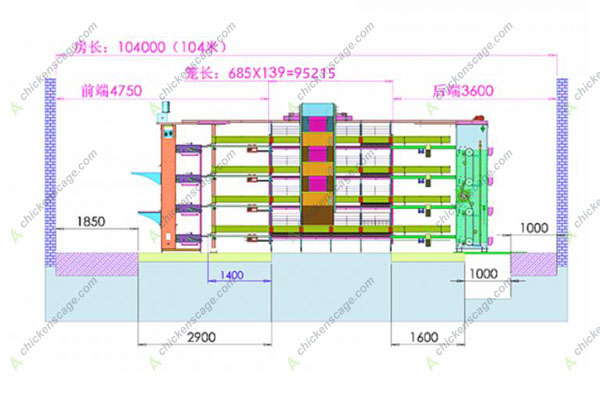

Length of 30,000 layer farm: 104 m. The length of the chicken house can be divided into three functional zones. The space for the egg collecting machine and manual operation, the space for the chicken cage, and the manure removal system inside the wall.
In this design, the length of the egg collection zone is 4750 mm, the chicken cage length is 685 mm × 139 = 95215 mm, and the length of the manure removal equipment is 3600 mm. So the total length is 4750 mm + 95215 mm + 3600 mm = 10365 mm.
Width of 30,000 layer farm: 9.4m. The width of the farm is the sum of the width of the chicken cages and the width of 5 aisles for daily management.
The width of one cage is 1250mm. In this chicken house, the two aisles next to the walls are 1280mm each, while the 2 central aisles are 1480mm each. So the total length of the chicken farm is 1250mm×3 + 1280 × 2 + 1480 × 2 = 9270 = 9.27 m.
Height of 30,000 layer farm: 3.5m. The height of the chicken house is 3.5m, which can accommodate the chicken cages and egg collecting machines, also good for chicken ventilation and climate control in the layer farm.

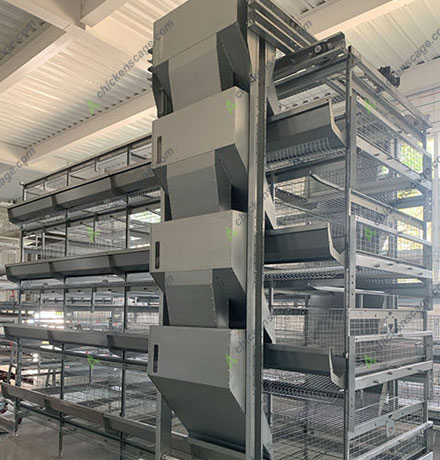

4-tier layer cage dimension
| Type | Capacity/set | Cage size (mm) | Cell size (mm) | Cell capacity | Door | Area/bird (cm2) |
|---|---|---|---|---|---|---|
| H type 4 tiers | 72 birds/set | 650*1250*2850 | 650*6250*500 | 9 birds/cell | 1 doors/side | 451.38 |
Main equipment for 30000-layer farming

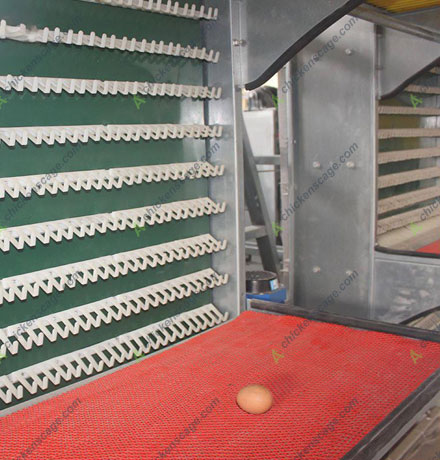

The 30,000-layer farm has an automated system that includes a transversal dung conveyor, automatic feeding, silo and feed uploading, automatic water drinking, automatic chicken egg collection, and automatic PP belt manure disposal. The primary equipment list is shown in the table below. Please be aware that additional auxiliary equipment might be utilized in the real situation. Please get in touch with us if you require any assistance setting up your chicken farm!
| Item | Type | Quantity |
|---|---|---|
| Layer cage | H type 4-tier layer cage | 417 sets, 139 sets/row |
| Feeding machine | Automatic | 3 sets, 1 set/row |
| Drinking system | Automatic | 3 sets, 1 set/row |

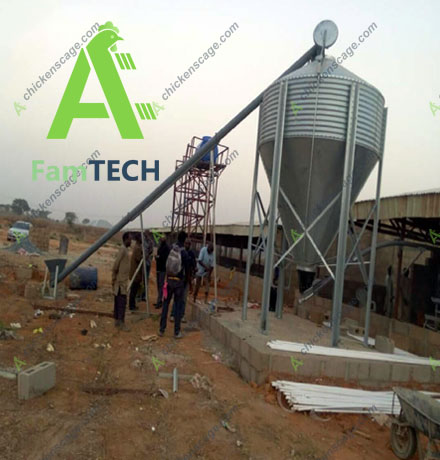

| Feeding pipe and silo | 1 set | |
| Manure removal system | Automatic | 3 sets, 1 set/row |
If you find this poultry farm plan is not suitable for your condition, contact us to get a new one for free!
FAMtech strength
Strict quality control
Self-owned standardized manufacturing factory with an advanced production line guaranteeing large capacity. The whole manufacturing process is under strict quality control to ensure the quality meets the stringent requirements of clients.
Innovative in R&D
The development team is continuously making progress on automatic chicken farm technology, and focusing on cage structure improvements, intelligent climate control, automatic egg and manure treatment, and adapting to modern farms.
30+years experience
Clients from Africa, Central Asia, Southeast Asia, South America, the Middle East, and other regions have come to rely on our poultry cages, cage-free systems, and integrated poultry farm design solutions. Please feel free to stop by our factory and take a look. Alternatively, we can set up virtual tours.
Integrated services
We offer a one-stop turnkey service, including site planning, production and manufacturing, installation and commissioning, technical training, and long-term maintenance. Our nationwide service team responds quickly to after-sales demands and provides full support throughout the entire process of aquaculture production.
What do our customers say?
Labor-saving and precise climate control

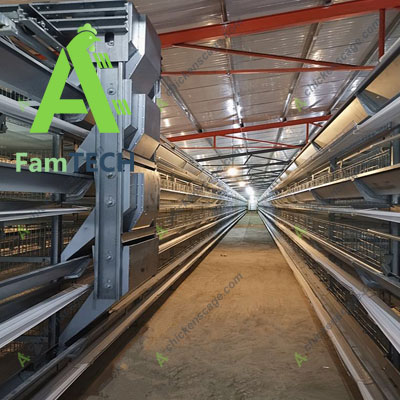

“Our 30,000-layer poultry house uses a 4-tier H type layer cage with an integrated egg collecting and manure-removal system, which increases the breeding efficiency and saves much time and labor. The climate control system impressed us in keeping healthy chickens and provides a stable egg productivity."
— Poultry farm manager
First choice for intensive chicken farming!

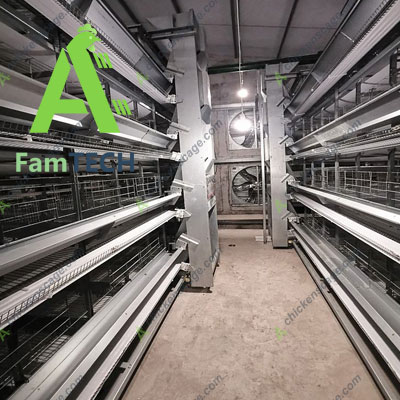

“FAMtech’s solution is suitable for intensive chicken farming. The h type chicken cage can be equipped with a complete automatic system for chicken raising, egg collecting, and manure removal. It lowers the difficulties of large-scale farm management and greatly improves the economic benefit.”
— A large-scale farm owner
