Poultry House Plans For 5000 Broiler Chickens
Plan A
- Chicken cage type: A type, 4-tier broiler cage (168 birds/set)
- Total cage sets: 30 sets
- Total capacity of layers: 30×168=5040 birds
- Chicken cage size: 1.83 m × 2.365 m × 1.7 m (L × W × H)
- Chicken house size: L × W × H = 24.65 m × 11.5 m ×2.24m (approximately 3051 sq ft)
- Chicken house layout: 168 chickens/set, 10 sets/row, 3 rows/house
- High-density layout × efficient feeding, maximizing output per unit area.
- From layout to equipment, it takes into account efficiency, stability and long-term returns.
Layout of plan A
This poultry house plan adopts a 4-tier a type broiler cage with a capacity of 168 birds/set to accommodate 5000 broilers in one chicken house. The battery cages are placed in 3 rows, each row with 10 sets, making a total number of about 5000 birds. The chicken house takes a floor area of 3051 sq ft.
Chicken house length: Approximately 30 m (about 98ft). The total length contains the length of broiler cages and reserved spaces, including the distance from the cage to the front and back walls, and the space between sets of chicken cages.
Chicken house width: The calculation includes the width of 3 sets of broiler cages and 4 passages.
Chicken house height: 2.24 m. The total height leaves enough space between the equipment and the roof.

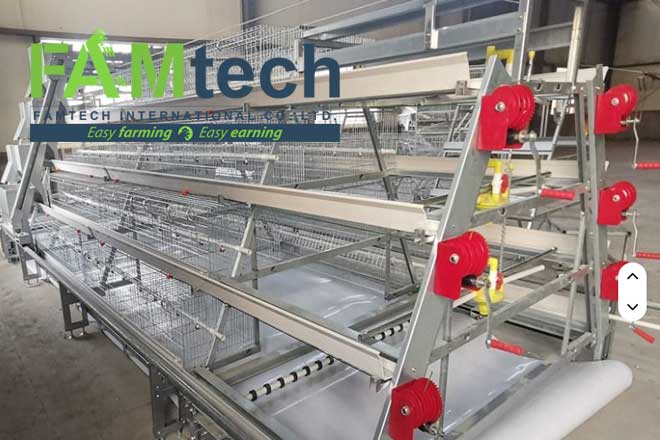

4-tier A type broiler cage dimension
| Type | Capacity | Cage size (cm) | Cell size |
|---|---|---|---|
| A type 4 tier | 168 birds/set | 1830*2365*1700 | 610*500*350 |
Equipment list of plan A
The poultry house plans for 5000 broiler chickens need broiler cages and associated poultry farm equipment, including automatic feeding machine, automatic drinking systems, automatic manure removal system, etc.
| Item | Type | Quantity |
|---|---|---|
| Broiler cage | A type 4-tier broiler cage | 30 sets, 10 sets/row |
| Feeding machine | Automatic | 3 sets, 1 set/row |
| Drinking system | Automatic | 3 sets, 1 set/row |
| Storage silo | Hot-dipped galvanized | 1 |
| Manure removal system | Automatic | 3 sets, 1 set/row |
Note: the table above is the main equipment for the 5000 broiler chicken house plan A. If you’re interested in getting a complete equipment list, contact us immediately!
Plan B
- Chicken cage type: H type, 3-tier broiler cage (90 birds/set)
- Total cage sets: 56sets
- Total capacity of layers: 56×90=5040 birds
- Chicken cage size: 1.5 m × 1 m × 2.2 m (L × W × H)
- Chicken house size: L × W × H = 48m ×5.5m ×2.8m (approximately 2841 sq ft)
- Chicken house layout: 90 chickens/set, 28 sets/row, 2 rows/house
- Save labor, increase turnover rate, and make breeding more controllable.
- The layout is clear, and the management is efficient, making it suitable for small-scale broiler chicken farming.

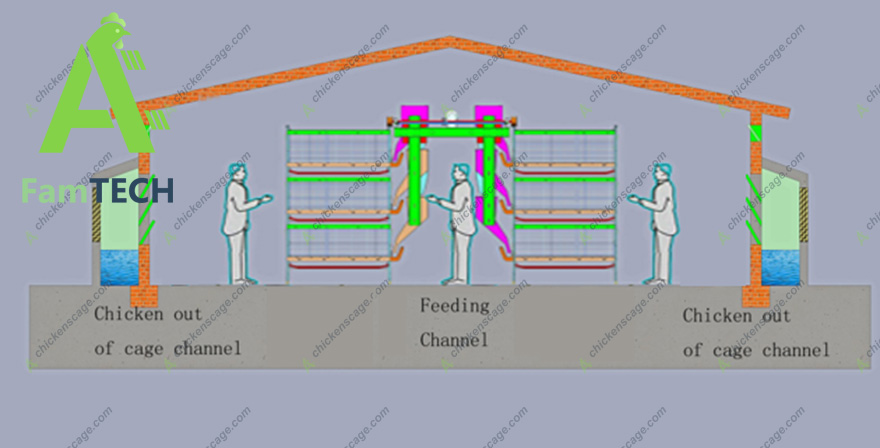

Layout of plan B
This poultry house plan adopts a 3-tier H type broiler cage with a capacity of 90 birds/set to accommodate 5000 broilers in one chicken house. The battery cages are placed in 2 rows, each row with 28 sets, making a total number of about 5000 birds. The chicken house takes a floor area of 2841 sq ft.
Chicken house length: Approximately 48m. The total length contains the length of broiler cages and reserved spaces, including the distance from the cage to the front and back walls, and the space between sets of chicken cages.
Chicken house width: 5.5 m. The calculation includes the width of 2 sets of broiler cages and 3 passages.
Chicken house height: 2.8 m. The height of the cage and the feeding machine is about 2.7m, a certain space should be left between the equipment and the roof.
3-tier H type broiler cage dimension
| Type | Capacity/set | Cage size (cm) | Cell size | Cell capacity | Door | Area/bird (cm2) |
|---|---|---|---|---|---|---|
| 3-tier H type | 90 birds/set | 150*100*220 | 150*100*49 | 30 birds/cell | 1 | 500 |
Equipment list of plan B
The poultry house plans for 5000 broiler chickens need broiler cages and associated poultry farm equipment, including automatic feeding machine, automatic drinking systems, automatic manure removal system, etc.
| Item | Type | Quantity |
|---|---|---|
| Broiler cage | H type 3-tier broiler cage | 56 sets, 28 sets/row |
| Feeding machine | Automatic | 1 set, 2rows share one |
| Drinking system | Automatic | 2 sets, 1set/row |
| Storage silo | Hot-dipped galvanized | 1 |
| Manure removal system | Automatic | 2 sets, 1 set/row |
Note: the table above is the main equipment for the 5000 broiler chicken house plan B. If you’re interested in getting a complete equipment list, contact us immediately!
Plan A Vs Plan B
Benefit of plan A:
The layout of plan A is compact, which can provide a higher breeding density, suitable for customers with limited land areas.
Benefit of plan B:

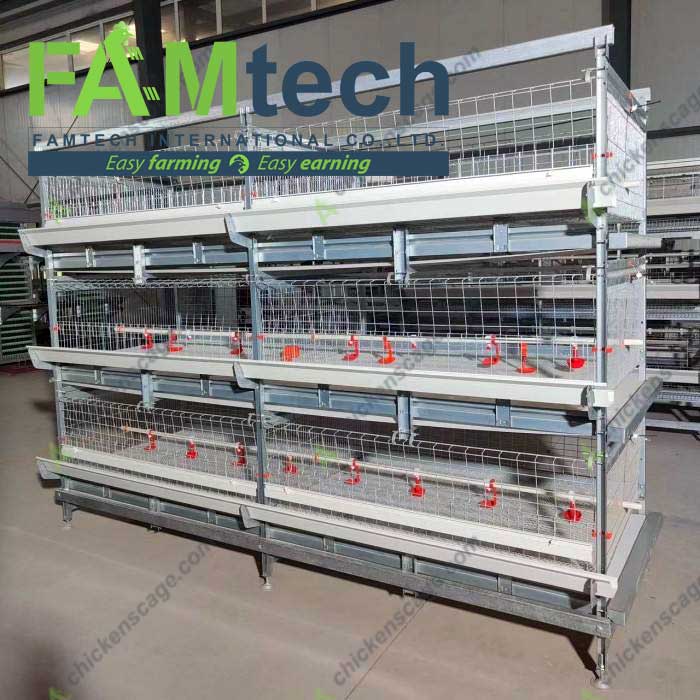

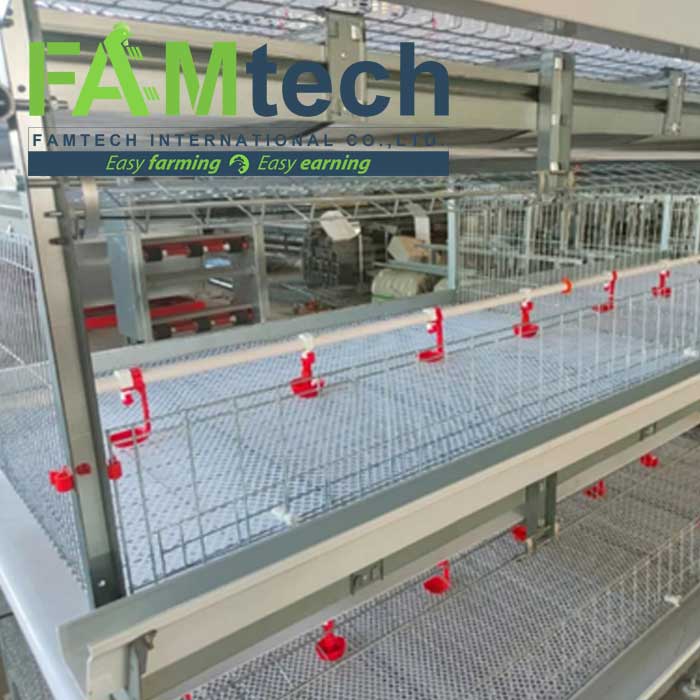

The broiler cage has 3 tiers, and a suitable height convenient for broiler harvesting. And the single side feed design enables two sets of broiler cages share one group of feeding machines, saving equipment costs. The other side is equipped with fully-opening cage doors, making it much easier for the broiler to go in and out.

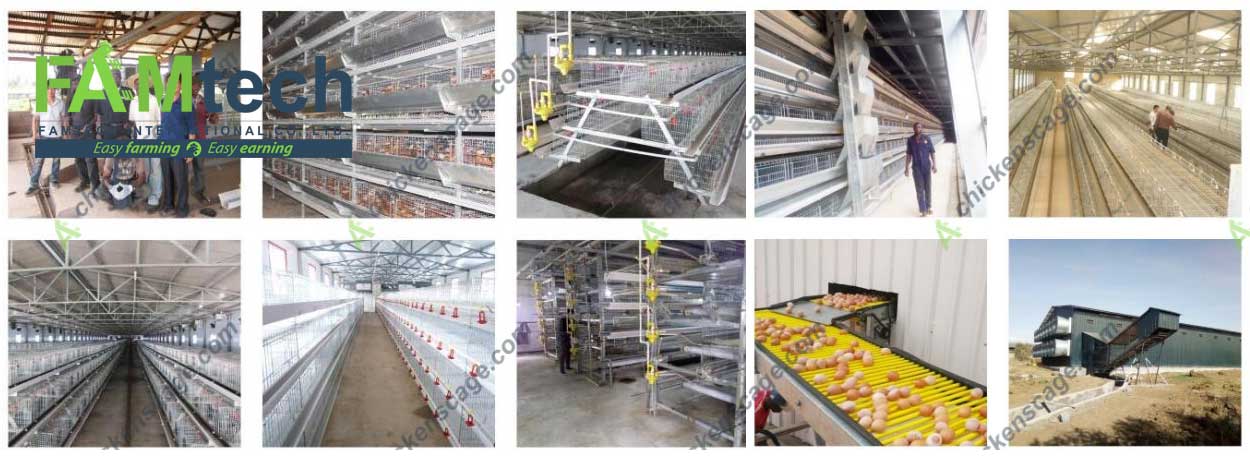

Comprehensive Poultry Farm Design Solutions
With over 30 years of experience in poultry cage manufacturing and farm equipment supply, we provide comprehensive poultry farm design solutions for layer projects ranging from 5,000 to large-scale commercial farms.
From farm layout planning and housing system selection to complete equipment integration, our solutions are customized based on land conditions, climate, budget, and management requirements—helping customers build efficient, reliable, and profitable poultry farms.
Project-Based Design
Each poultry farm design is based on its breeding scale, site condition on the premise of complying with local green regulations. The future expansion plan is also taken into consideration.
- 5000 birds/10000 birds/20000+birds
- Length and width of floor areas/ Single or multiple houses/ Reserved area for expansion plan
- Breeding density/Animal welfare/ Environmental emission control limitations
Customized house layout & cage system design
Careful selection of chicken cage types and house structure is carried out. We help clients make a well-matched plan on the same scale with different structural schemes.
- A-type / H-type
- 3 tiers / 4 tiers / Multi-tier
- Open / Semi-open / Closed house
Integrated equipment configuration
The fully integrated system is a coordination of power, load, and operating rhythm. It reduces the reliance on human intervention and decreases management complexity. The equipment system includes:
- Feeding system
- Drinking system
- Egg collection system
- Manure removal system
- Ventilation & cooling system
- Lighting system
Climate & market-oriented design
We have rich experience in offering poultry farm designs for clients from different regions, featuring different climates. Our design is adapted to the climate, not copied from other markets.
- Tropical regions: Strong ventilation and cooling design. Semi-open / Open-type chicken coop .
- Cold regions: Insulation structure.Closed chicken coop + Climate Control System
- Drought / High Dust Pollution Areas: Stability of the drinking water system. Equipment anti-corrosion and durability.
Cost control & ROI optimization
We help customers balance initial investment and long-term operating costs.
One-stop supply & technical support
The end-to-end support comprises farm layout drawings, equipment configuration list, installation guidance, operation & maintenance manuals, remote technical support, and reasonable and cost-saving packing & loading design.
